BT5S Reset & Teardown (FCC ID 2ANDL-BT5S)

Before you buy the Tuya Global BT5S, check what's inside.

The BT5S is a compact Bluetooth Low Energy (BLE) module developed by Tuya, featuring the TLSR8250F512ET32 chipset. It is designed for integration into various low-power smart devices within the Tuya/Smart Life ecosystem.

⚠️ NOTE: Ensure correct battery polarity and voltage range (1.8V-3.6V) during operation.

Quick Specs

Manufacturer: Tuya Global
Model: BT5S
Protocol: Bluetooth
Chipset: Realtek/Beken
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: TLSR8250F512ET32
Flashable: ❌ No
Info: The TLSR8250F512ET32 chipset is proprietary and typically not designed for user flashing with custom firmware like Tasmota or ESPHome without significant reverse engineering and hardware modification.

User Manual

Scanned pages from the official user manual:

BT5S Manual

External Photos

Photos of the device exterior:

BT5S Exterior

Internal Photos

Teardown photos showing the PCB and components:

BT5S PCB

Verdict

The BT5S is a Bluetooth device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

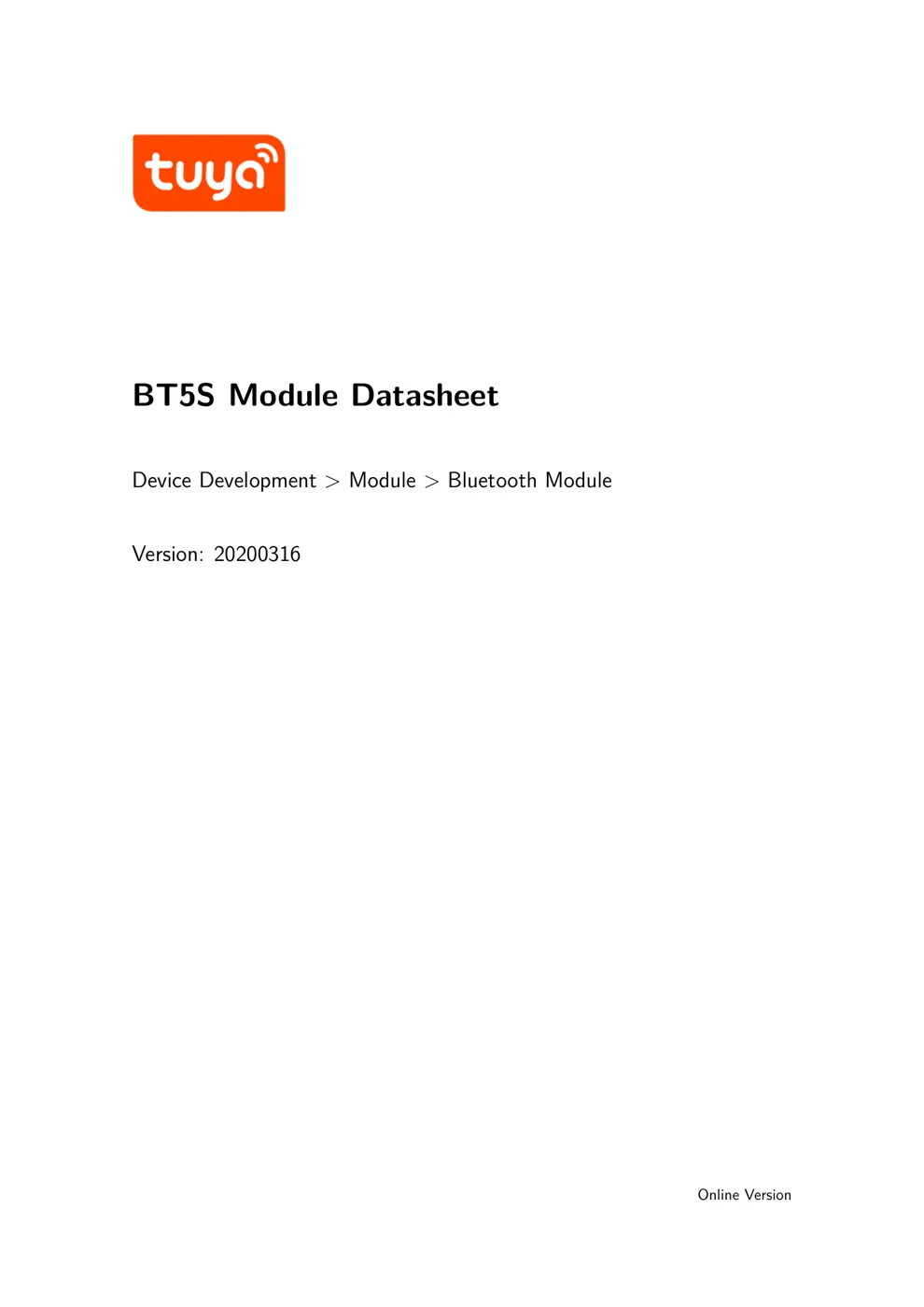

BT5S Module Datasheet
Device Development > Module > Bluetooth Module
Version: 20200316
Online Version

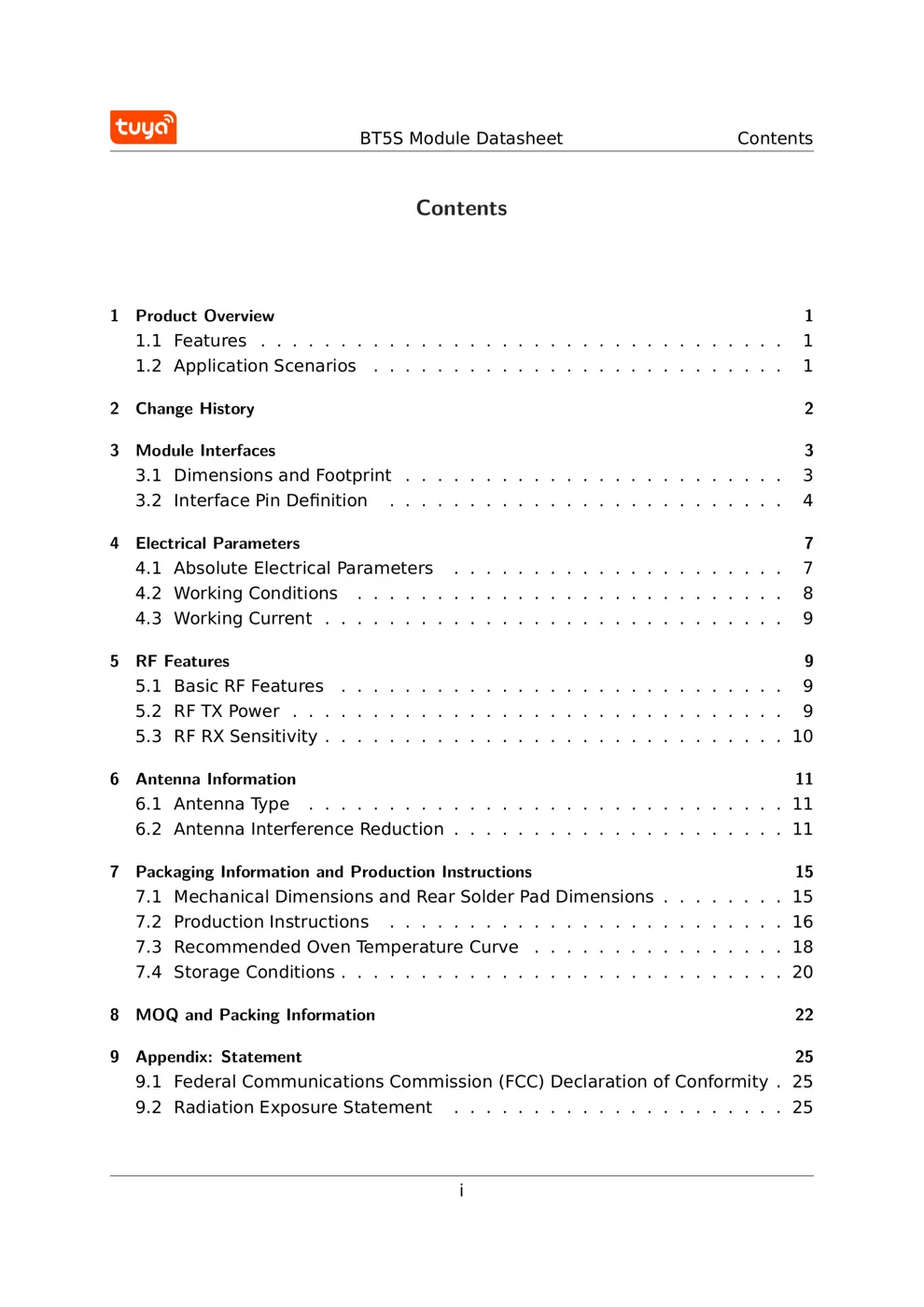

BT5S Module Datasheet Contents
Contents
1 Product Overview 1
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Application Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . 1

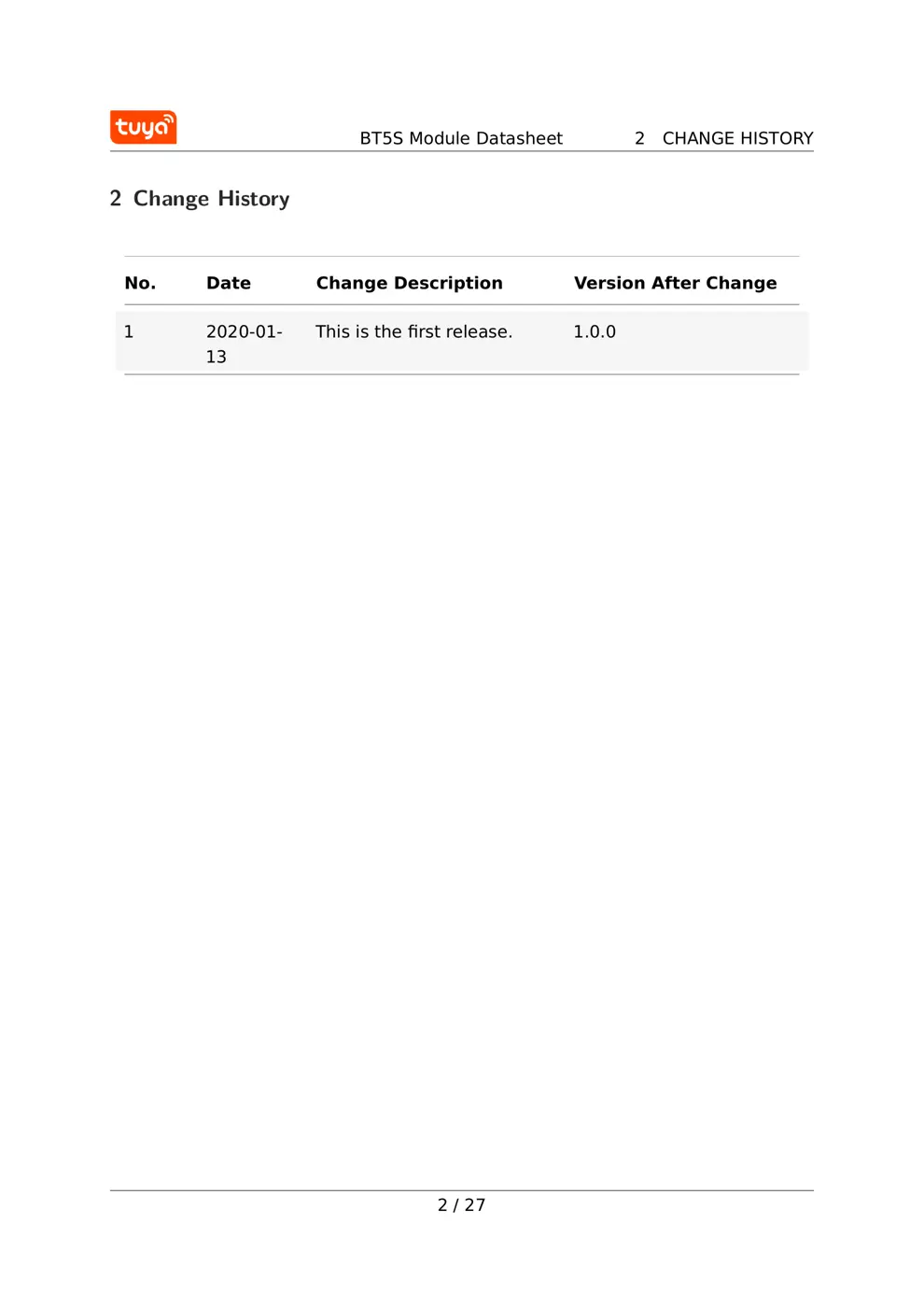

2 Change History 2
3 Module Interfaces 3

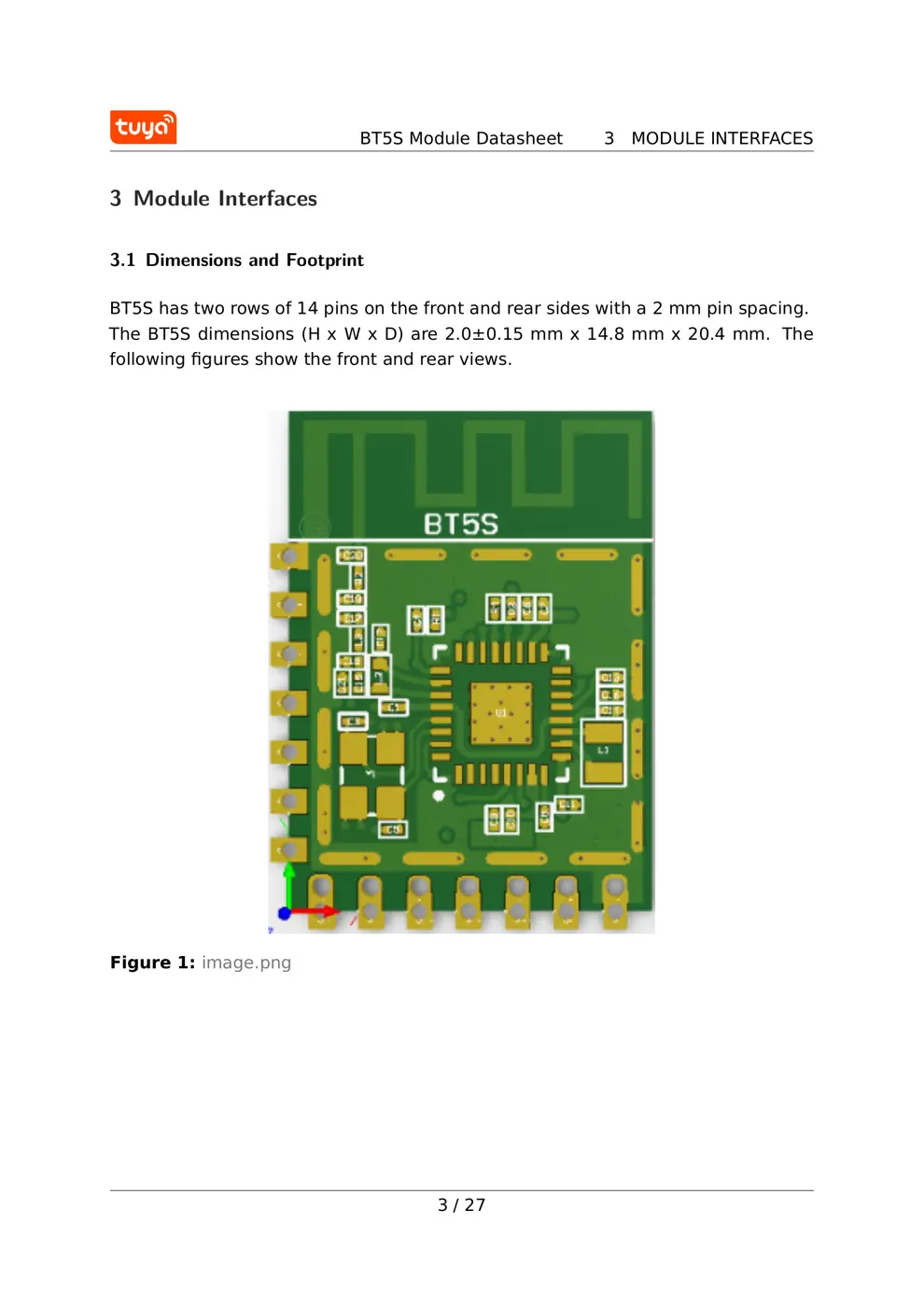

3.1 Dimensions and Footprint . . . . . . . . . . . . . . . . . . . . . . . . 3

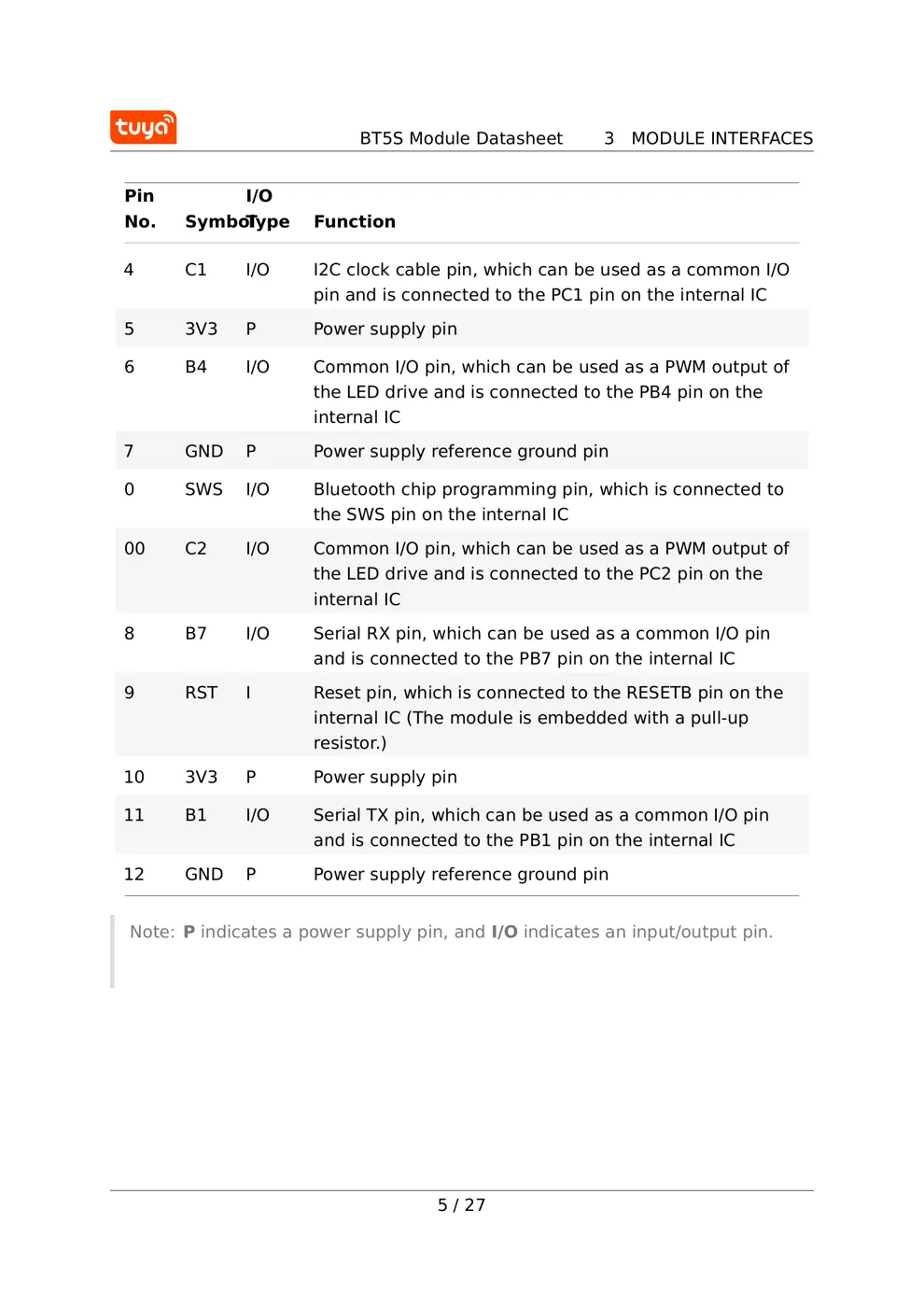

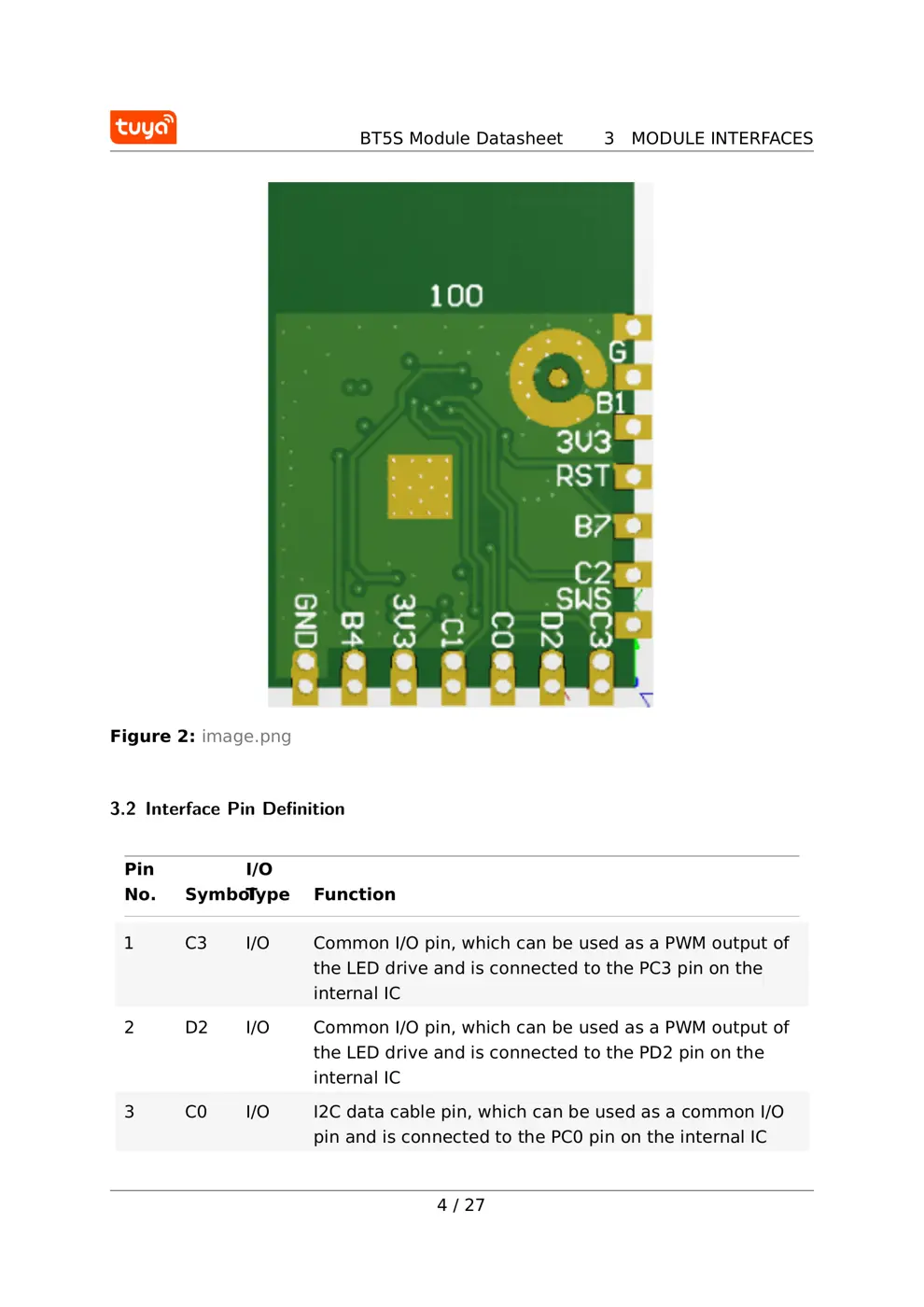

3.2 Interface Pin Deﬁnition . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 Electrical Parameters 7

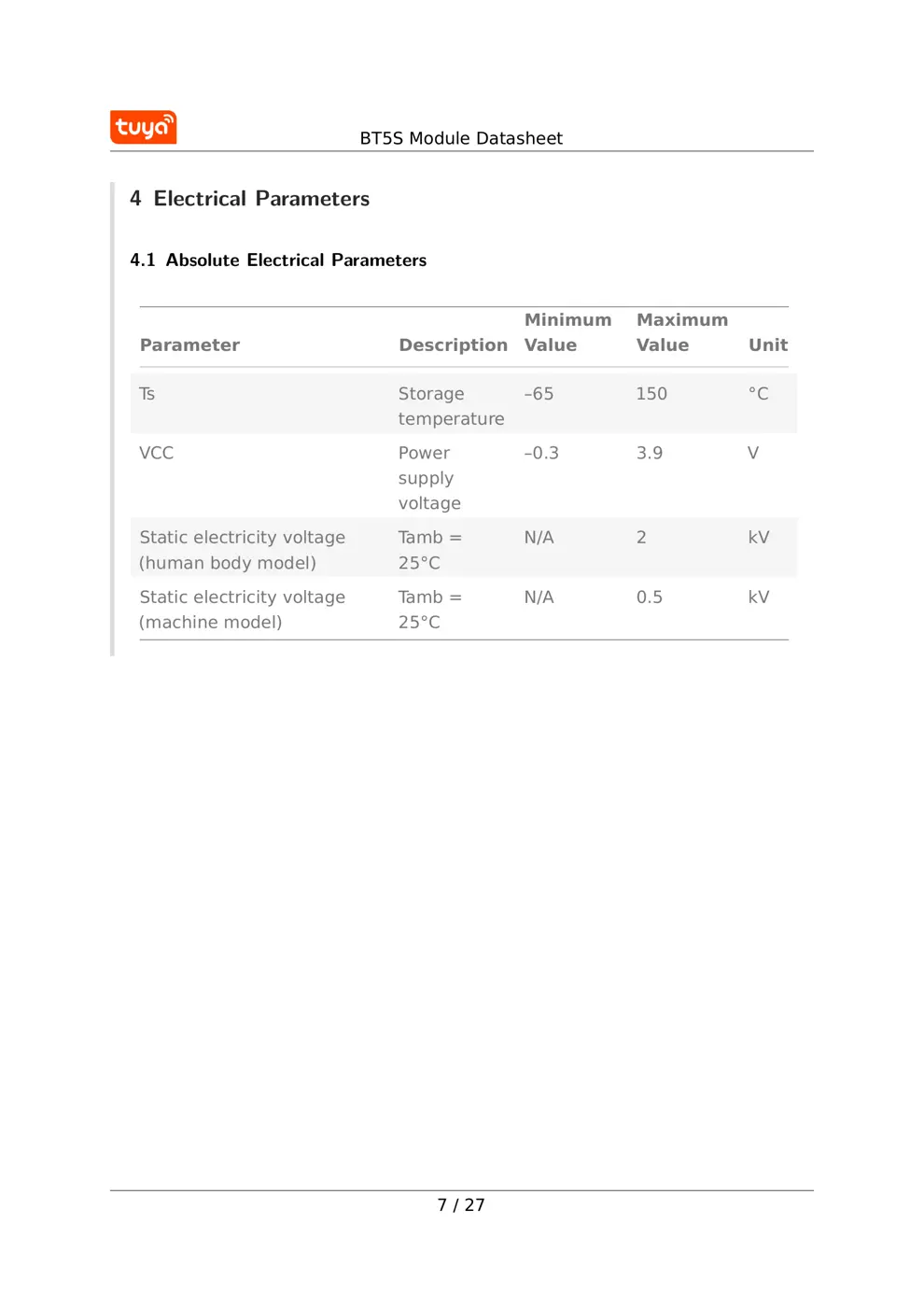

4.1 Absolute Electrical Parameters . . . . . . . . . . . . . . . . . . . . . 7

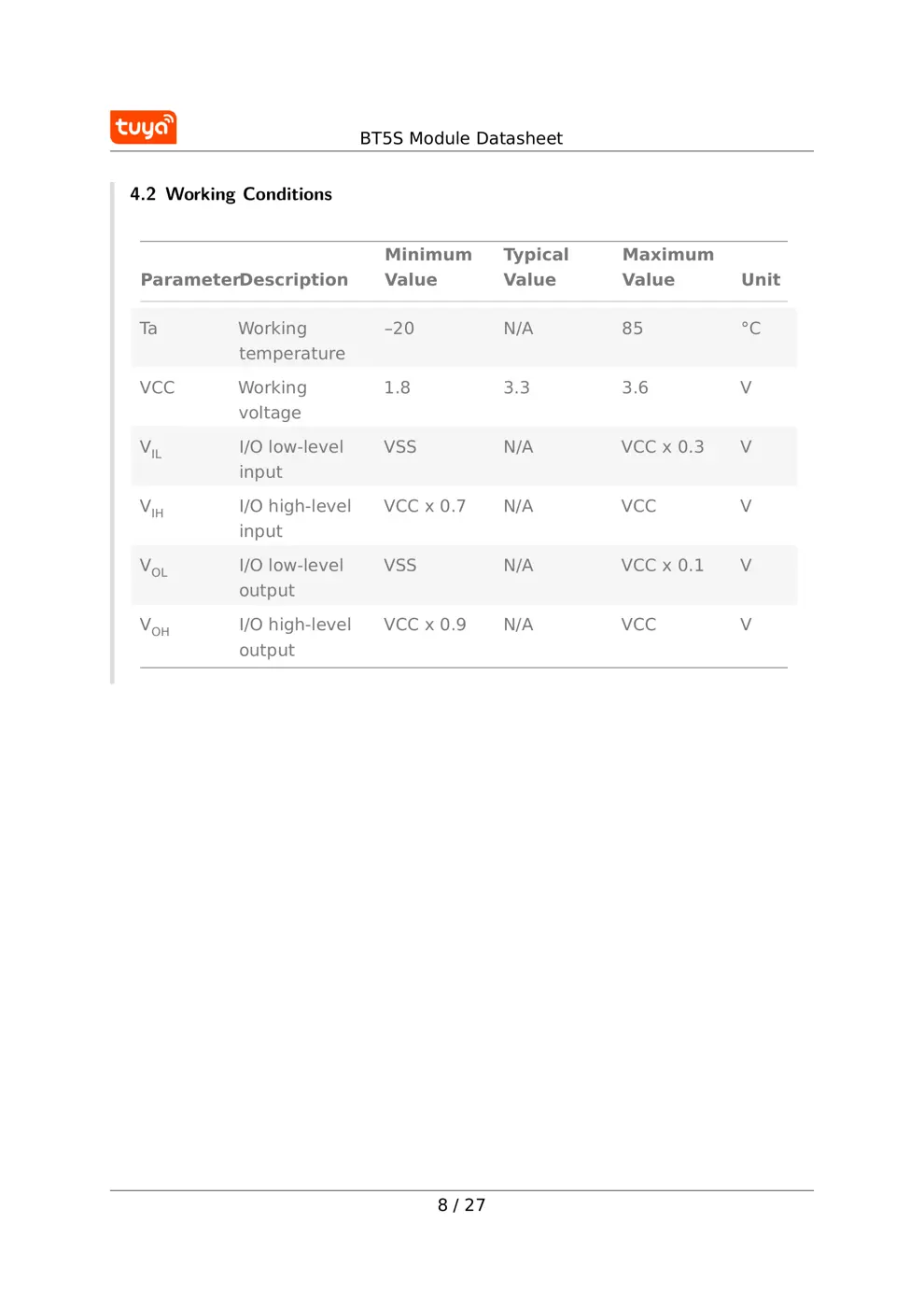

4.2 Working Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

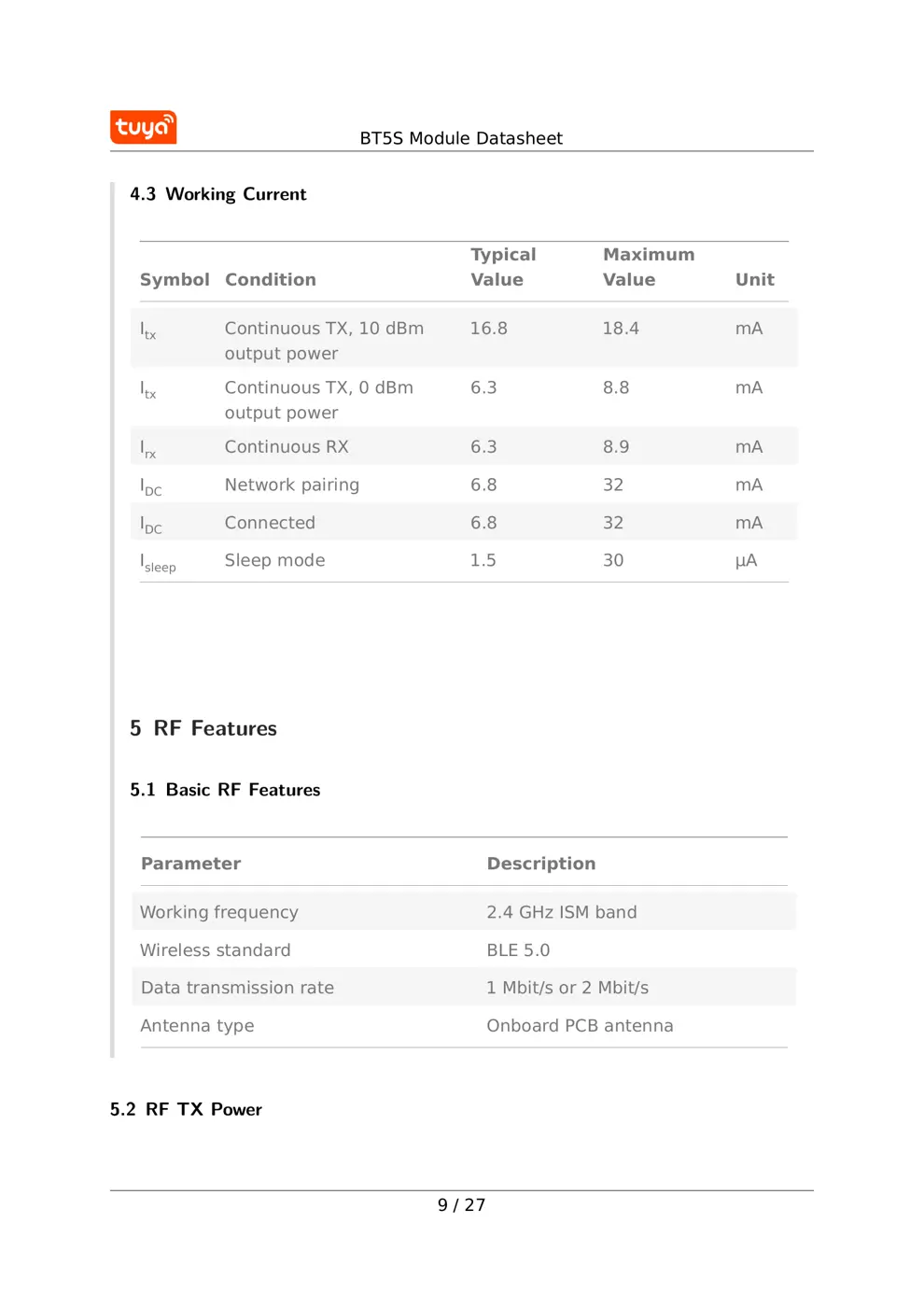

4.3 Working Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 RF Features 9
5.1 Basic RF Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.2 RF TX Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.3 RF RX Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Antenna Information 11
6.1 Antenna T ype . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.2 Antenna Interference Reduction . . . . . . . . . . . . . . . . . . . . . 11
7 Packaging Information and Production Instructions 15
7.1 Mechanical Dimensions and Rear Solder Pad Dimensions . . . . . . . . 15
7.2 Production Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.3 Recommended Oven T emperature Curve . . . . . . . . . . . . . . . . 18
7.4 Storage Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 MOQ and Packing Information 22
9 Appendix: Statement 25
9.1 Federal Communications Commission (FCC) Declaration of Conformity . 25
9.2 Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . 25
i

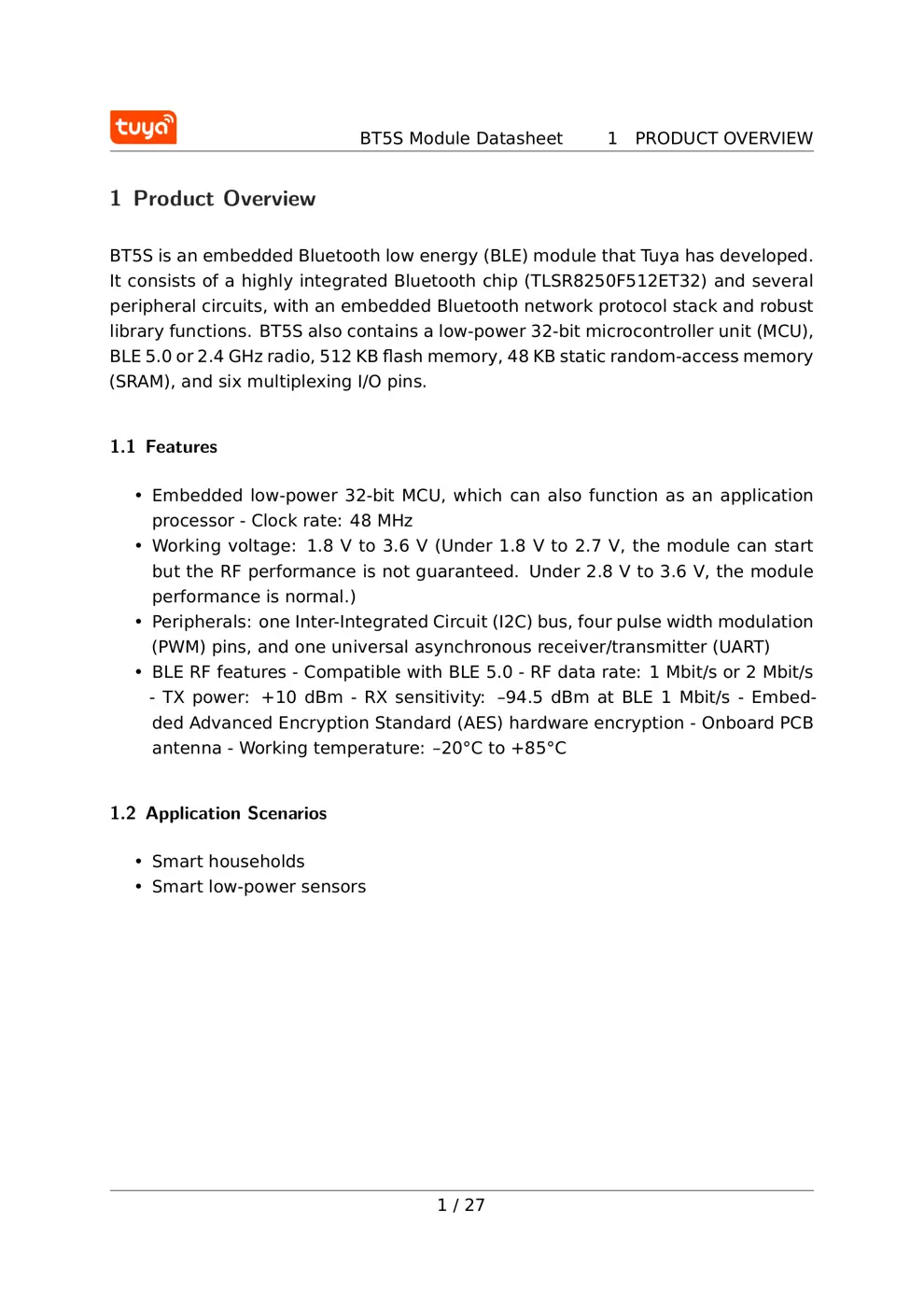

BT5S Module Datasheet 1 PRODUCT OVERVIEW
1 Product Overview
BT5S is an embedded Bluetooth low energy (BLE) module that T uya has developed.
It consists of a highly integrated Bluetooth chip (TLSR8250F512ET32) and several
peripheral circuits, with an embedded Bluetooth network protocol stack and robust
library functions. BT5S also contains a low-power 32-bit microcontroller unit (MCU),
BLE 5.0 or 2.4 GHz radio, 512 KB ﬂash memory, 48 KB static random-access memory
(SRAM), and six multiplexing I/O pins.
1.1 Features
• Embedded low-power 32-bit MCU, which can also function as an application
processor - Clock rate: 48 MHz
• Working voltage: 1.8 V to 3.6 V (Under 1.8 V to 2.7 V, the module can start
but the RF performance is not guaranteed. Under 2.8 V to 3.6 V, the module
performance is normal.)
• Peripherals: one Inter-Integrated Circuit (I2C) bus, four pulse width modulation
(PWM) pins, and one universal asynchronous receiver/transmitter (UART)
• BLE RF features - Compatible with BLE 5.0 - RF data rate: 1 Mbit/s or 2 Mbit/s
- TX power: +10 dBm - RX sensitivity: –94.5 dBm at BLE 1 Mbit/s - Embed-
ded Advanced Encryption Standard (AES) hardware encryption - Onboard PCB
a...
