TYLC6 Reset & Teardown (FCC ID 2ANDL-TYLC6)
Factory reset and internal photos for Tuya Global TYLC6. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global TYLC6, check what's inside.
The TYLC6 is a low-power Wi-Fi module from Tuya, based on the ESP8285 chipset. It supports 802.11b/g/n and is designed for integration into various smart home devices.
⚠️ NOTE: Ensure correct battery polarity and voltage.
Quick Specs
- Manufacturer: Tuya Global
- Model: TYLC6
- Protocol: WiFi
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: ESP8285
- Flashable: ✅ Yes
- Info: The ESP8285 is a known chip that can be flashed with custom firmware.
User Manual

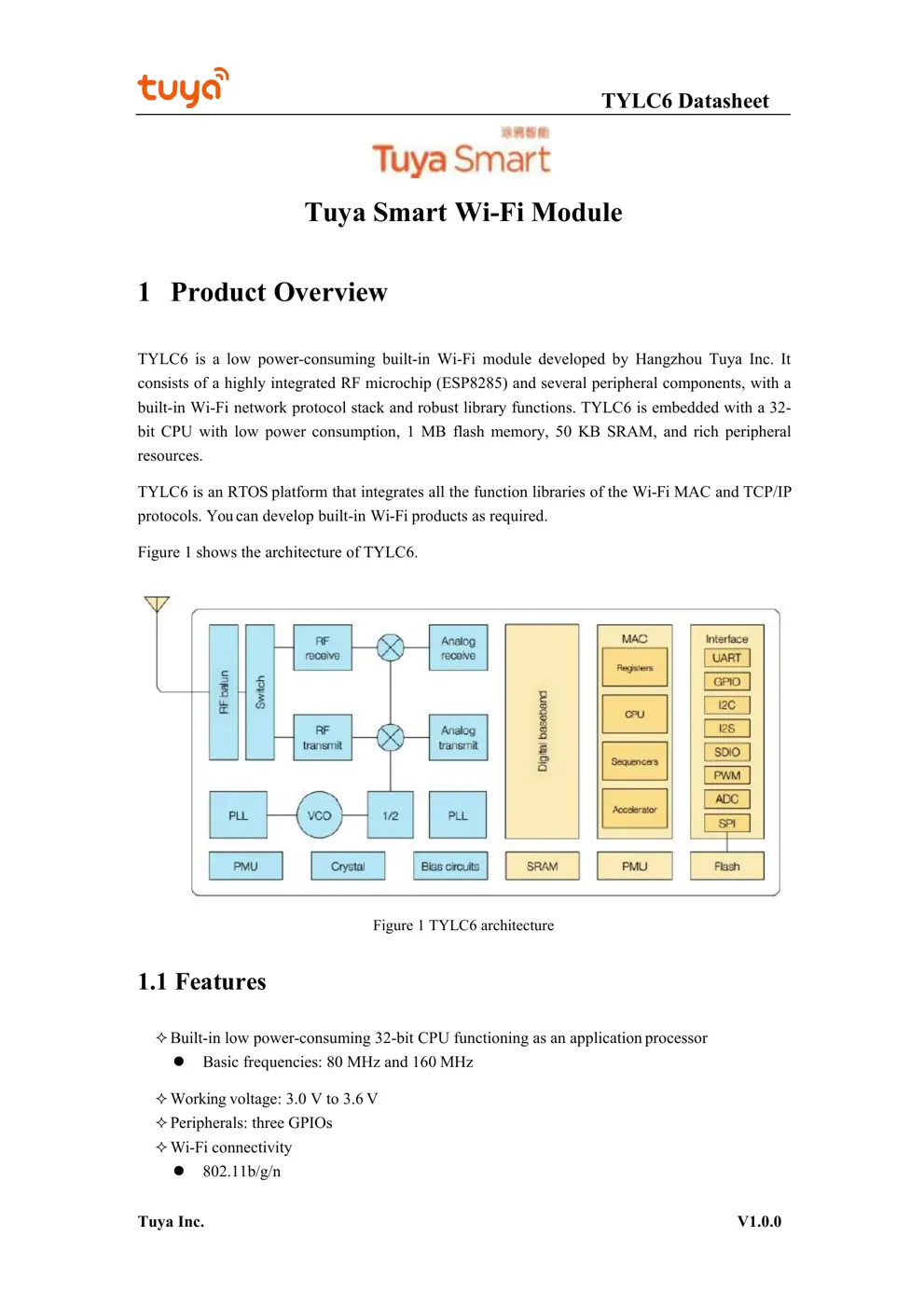

Scanned pages from the official user manual:

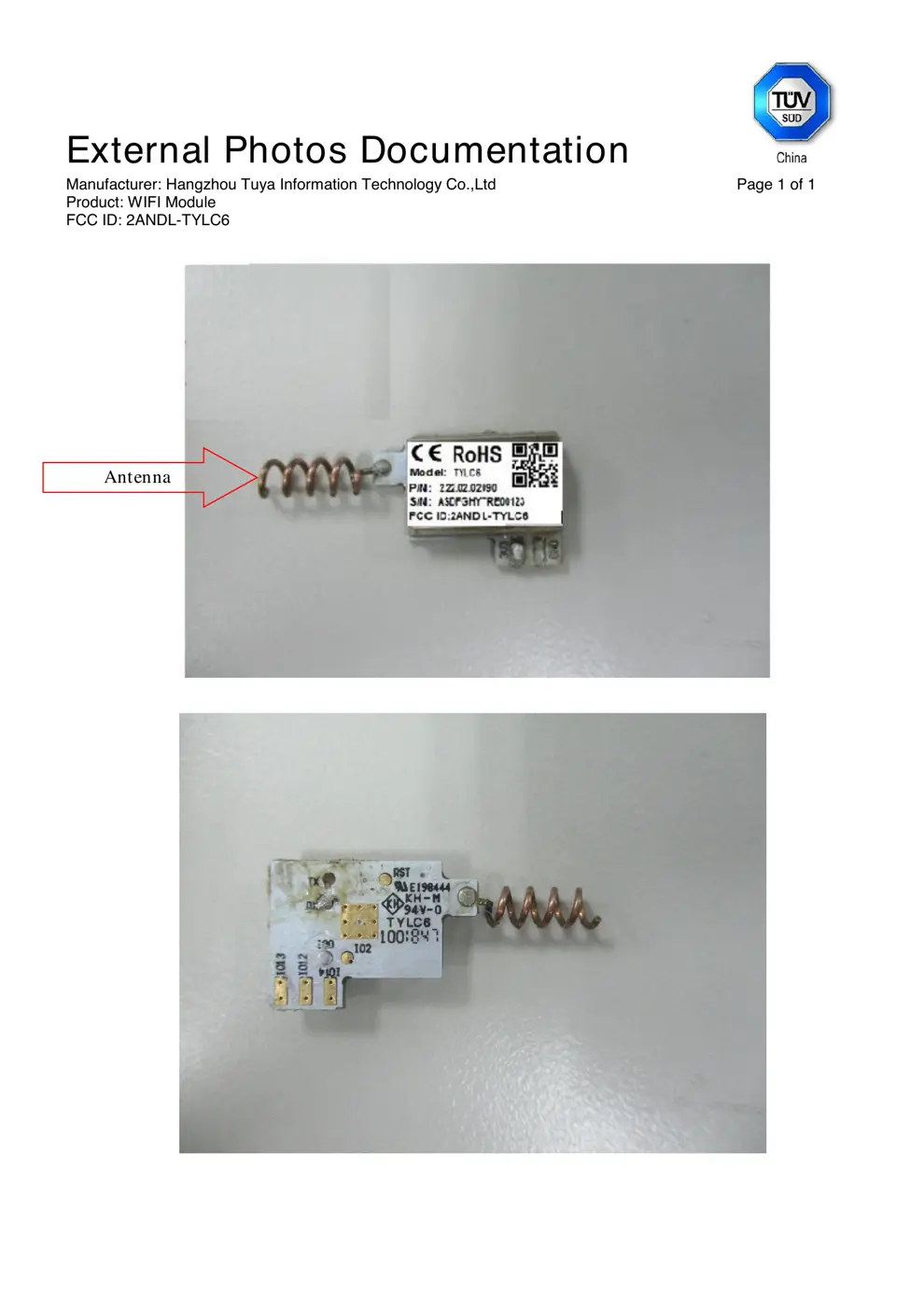

External Photos
Photos of the device exterior:

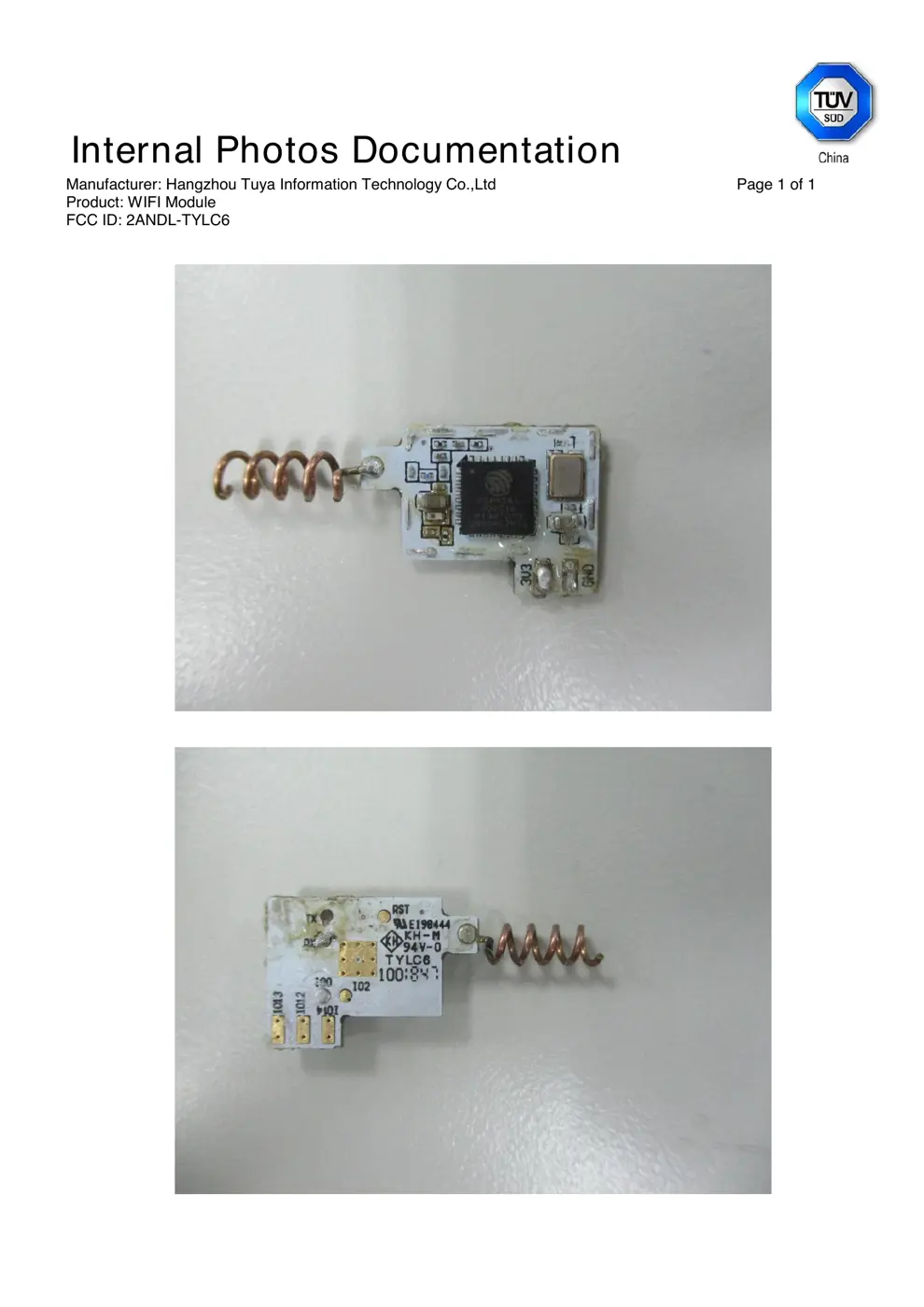

Internal Photos
Teardown photos showing the PCB and components:
Verdict
The TYLC6 is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)
TYLC6 Datasheet
Tuya Inc. V1.0.0
Tuya Smart Wi-Fi Module
1 Product Overview
TYLC6 is a low power-consuming built-in Wi-Fi module developed by Hangzhou Tuya Inc. It
consists of a highly integrated RF microchip (ESP8285) and several peripheral components, with a
built-in Wi-Fi network protocol stack and robust library functions. TYLC6 is embedded with a 32-
bit CPU with low power consumption, 1 MB flash memory, 50 KB SRAM, and rich peripheral
resources.
TYLC6 is an RTOS platform that integrates all the function libraries of the Wi-Fi MAC and TCP/IP
protocols. You can develop built-in Wi-Fi products as required.
Figure 1 shows the architecture of TYLC6.
Figure 1 TYLC6 architecture
1.1 Features
Built-in low power-consuming 32-bit CPU functioning as an application processor
Basic frequencies: 80 MHz and 160 MHz
Working voltage: 3.0 V to 3.6 V
Peripherals: three GPIOs
Wi-Fi connectivity
802.11b/g/n
Tuya Inc. V1.0.0
TYLC6 Datasheet

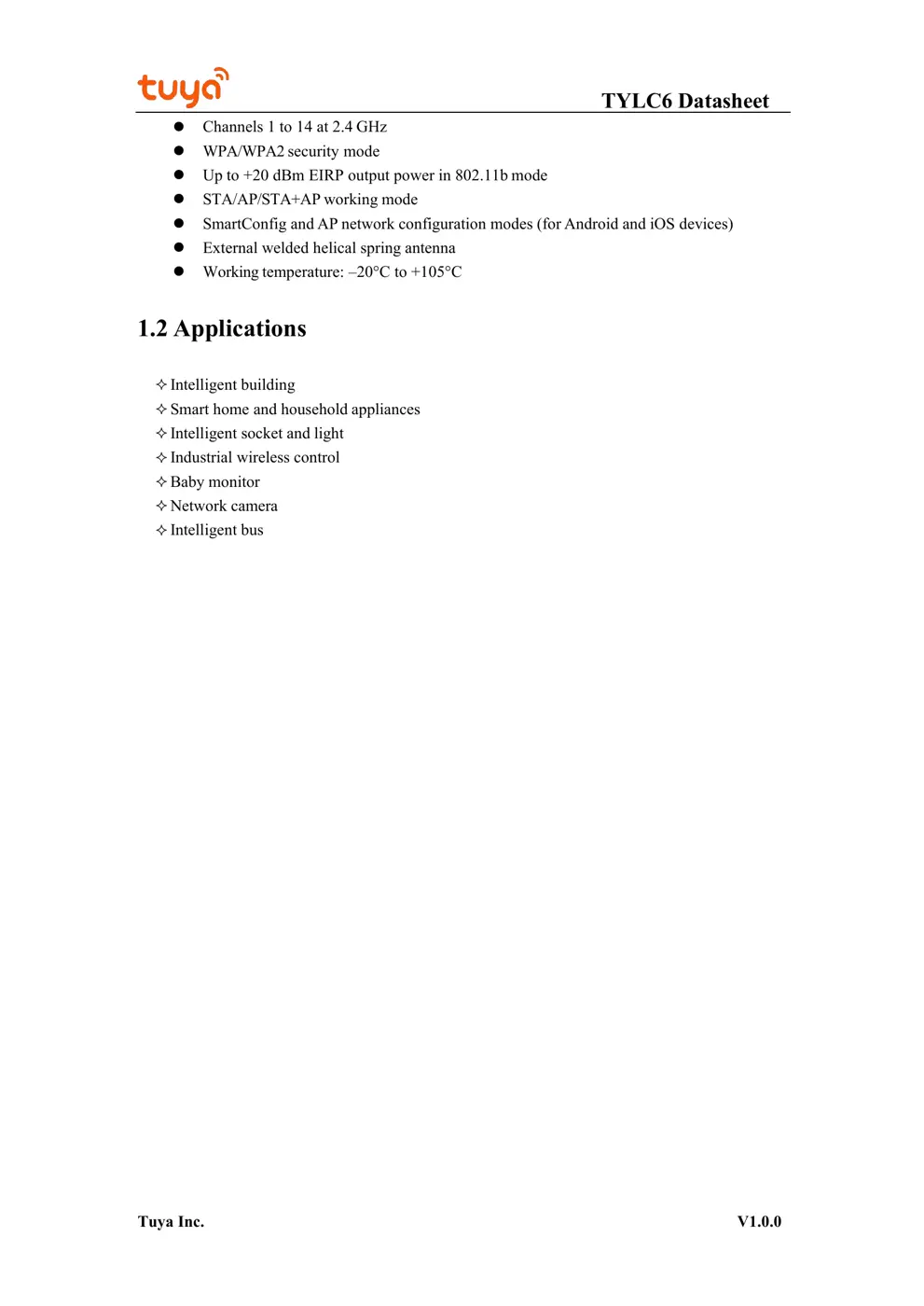

Channels 1 to 14 at 2.4 GHz
WPA/WPA2 security mode
Up to +20 dBm EIRP output power in 802.11b mode
STA/AP/STA+AP working mode
SmartConfig and AP network configuration modes (for Android and iOS devices)
External welded helical spring antenna
Working temperature: –20°C to +105°C
1.2 Applications
Intelligent building
Smart home and household appliances
Intelligent socket and light
Industrial wireless control
Baby monitor
Network camera
Intelligent bus
Tuya Inc. V1.0.0
TYLC6 Datasheet

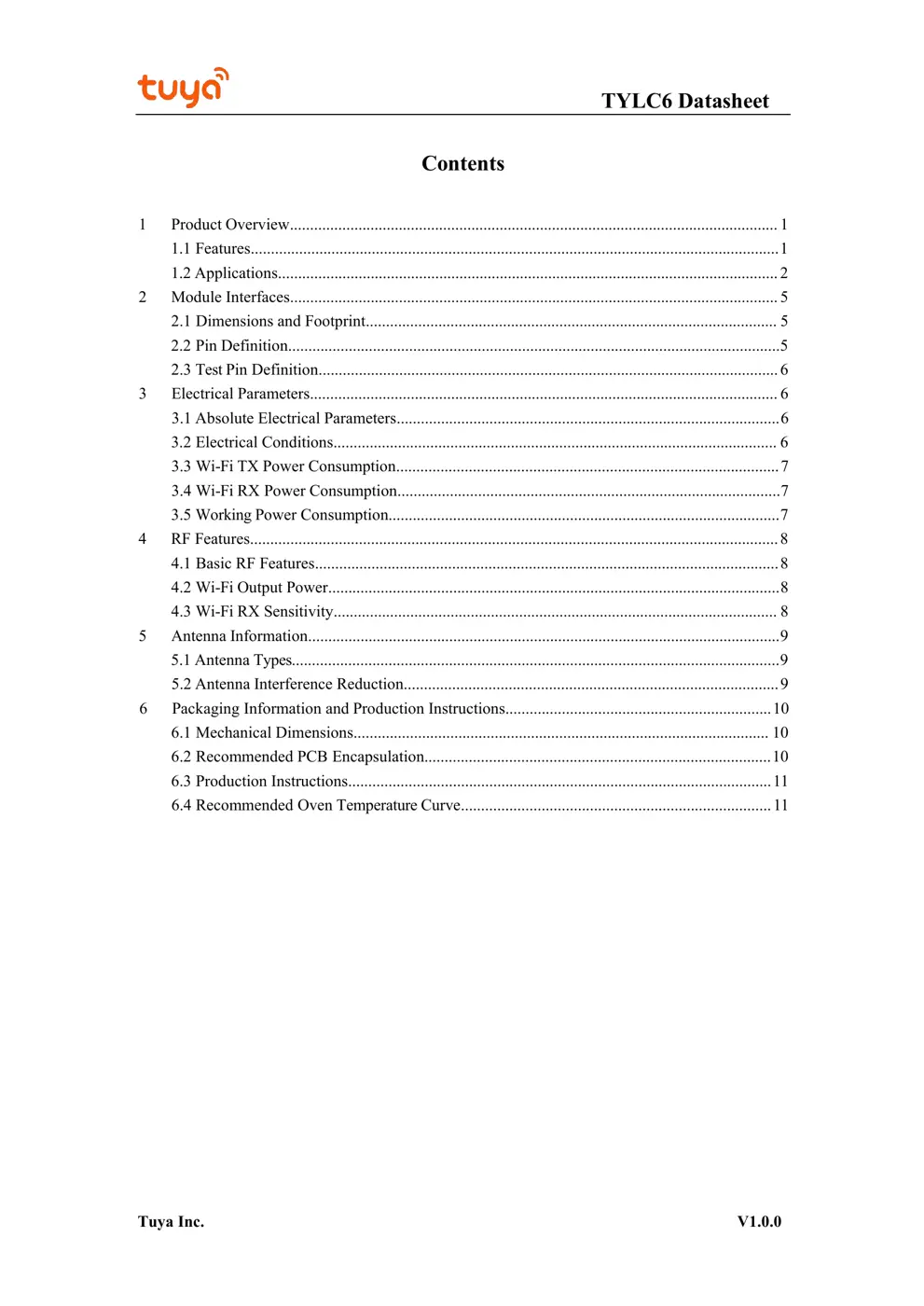

Contents
1 Product Overview......................................................................................................................... 1
1.1 Features...................................................................................................................................1
1.2 Applications............................................................................................................................ 2
2 Module Interfaces......................................................................................................................... 5
2.1 Dimensions and Footprint...................................................................................................... 5
2.2 Pin Definition..........................................................................................................................5
2.3 Test Pin Definition.................................................................................................................. 6
3 Electrical Parameters.................................................................................................................... 6
3.1 Absolute Electrical Parameters...............................................................................................6
3.2 Electrical Conditions.............................................................................................................. 6
3.3 Wi-Fi TX Power Consumption...............................................................................................7
3.4 Wi-Fi RX Power...
