WXU Reset & Teardown (FCC ID 2ANDL-WXU)
Factory reset and internal photos for Tuya Global WXU. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global WXU, check what's inside.
The Tuya WXU is a versatile, low-power embedded module designed for IoT applications. It integrates both Wi-Fi and Bluetooth LE 5.0 connectivity, powered by an ARMv8 MCU, making it suitable for smart home devices and industrial control.
⚠️ NOTE: Ensure correct voltage is applied (2.5V to 5.5V) and polarity is observed if powered by external DC.
Quick Specs
- Manufacturer: Tuya Global
- Model: WXU
- Protocol: WiFi
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: T103C-HL
- Flashable: ❌ No
- Info: While it has a flash chip, these Tuya modules are typically locked down and difficult to flash with custom firmware without significant reverse engineering or specialized tools.
User Manual

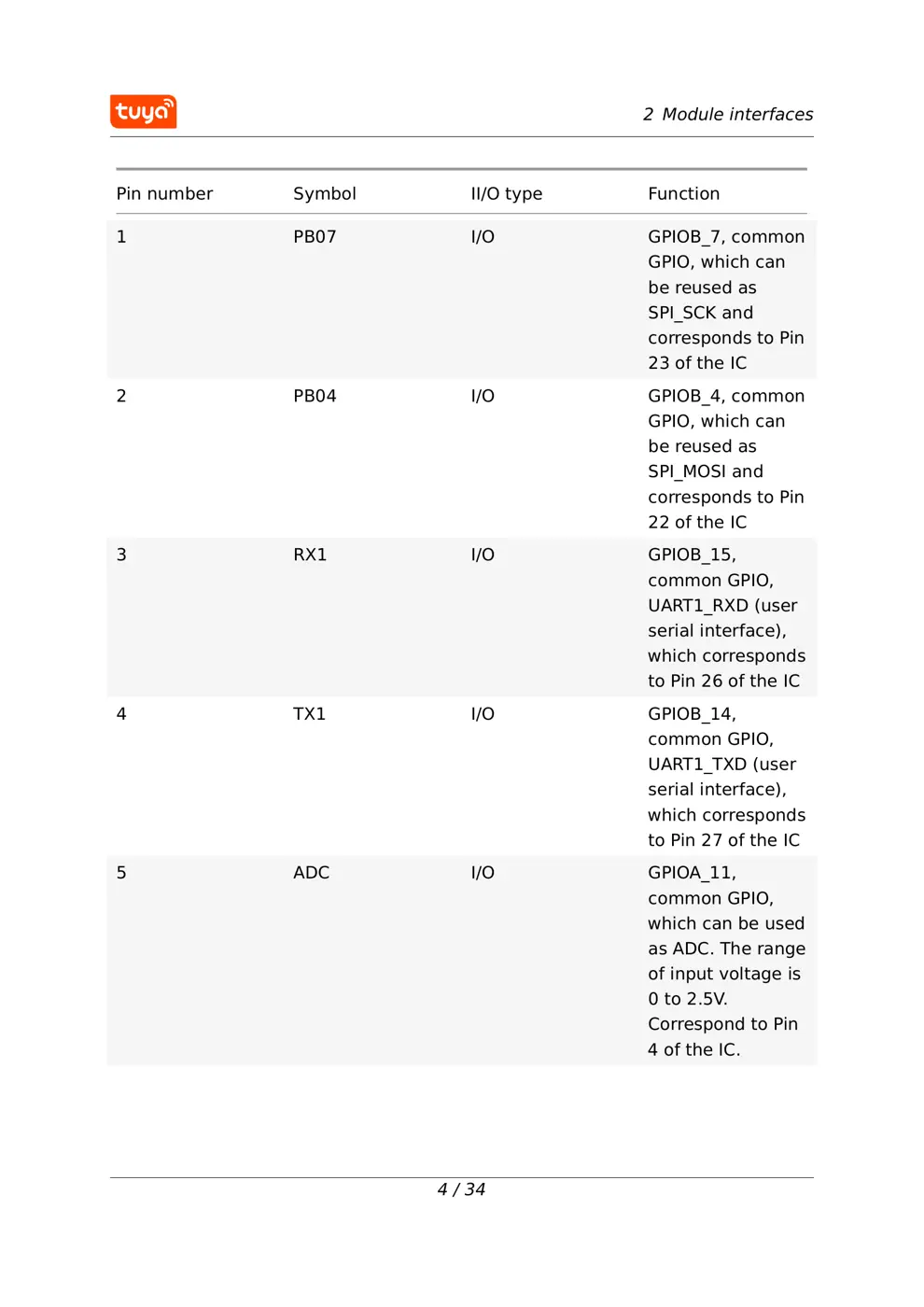

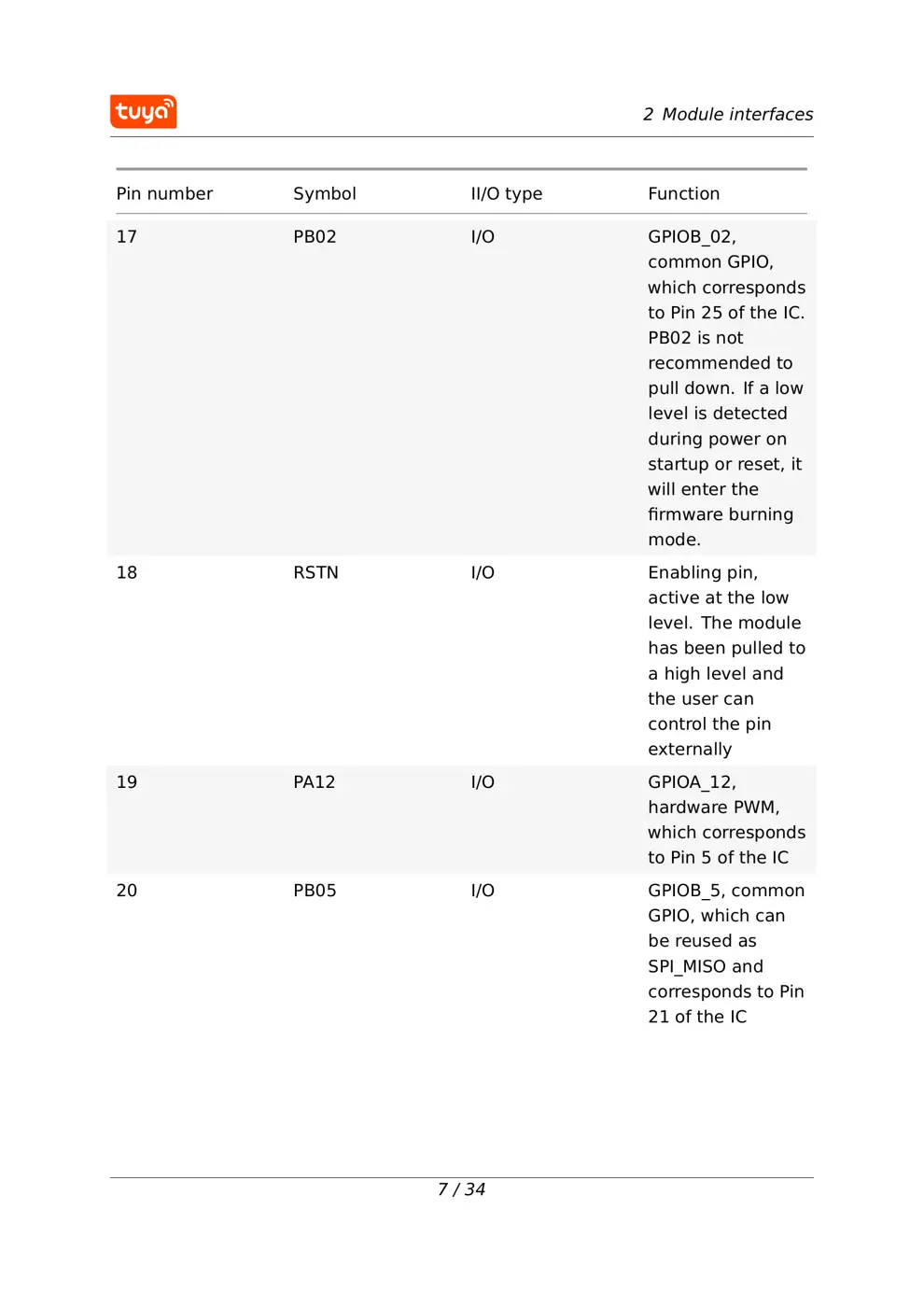

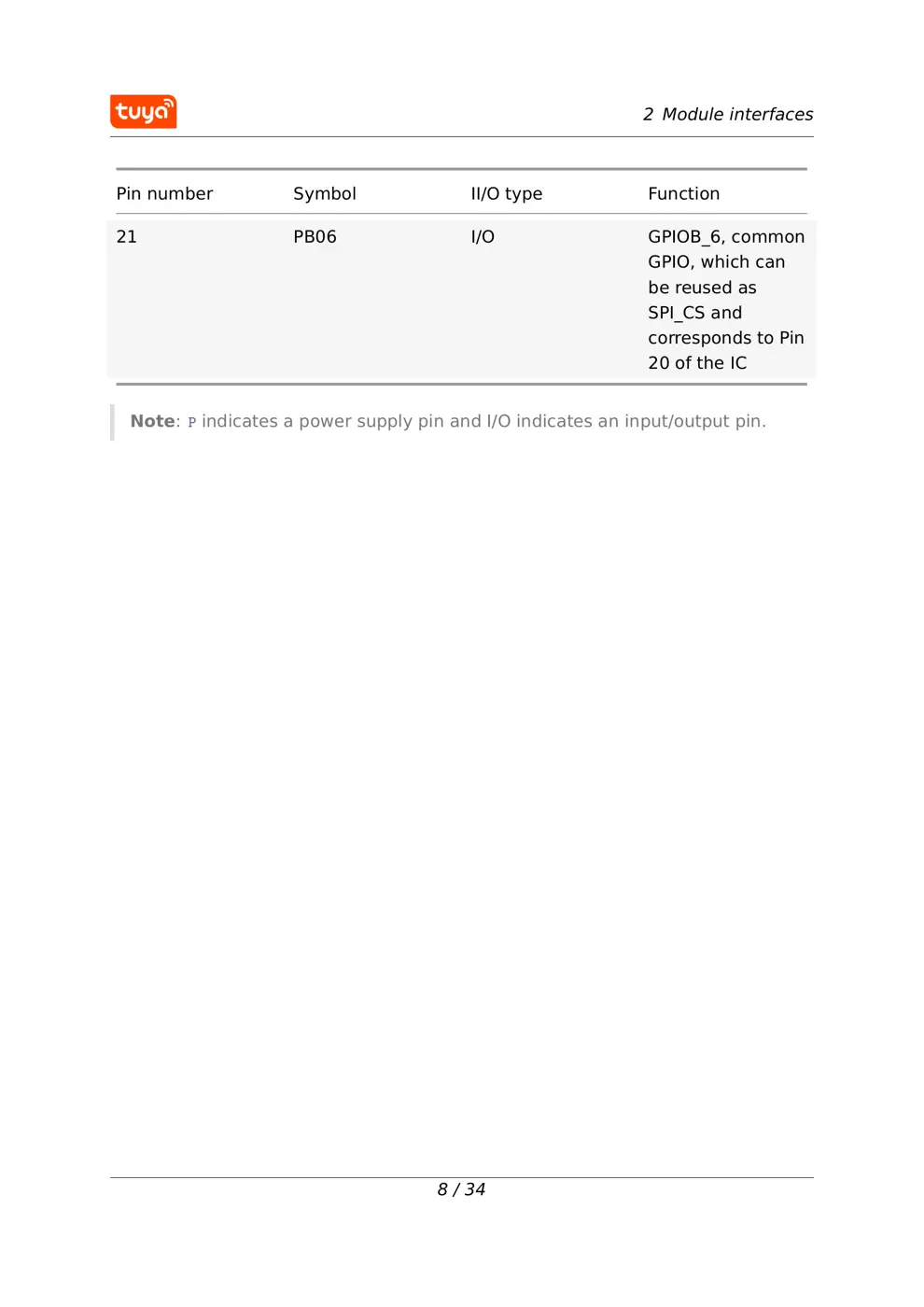

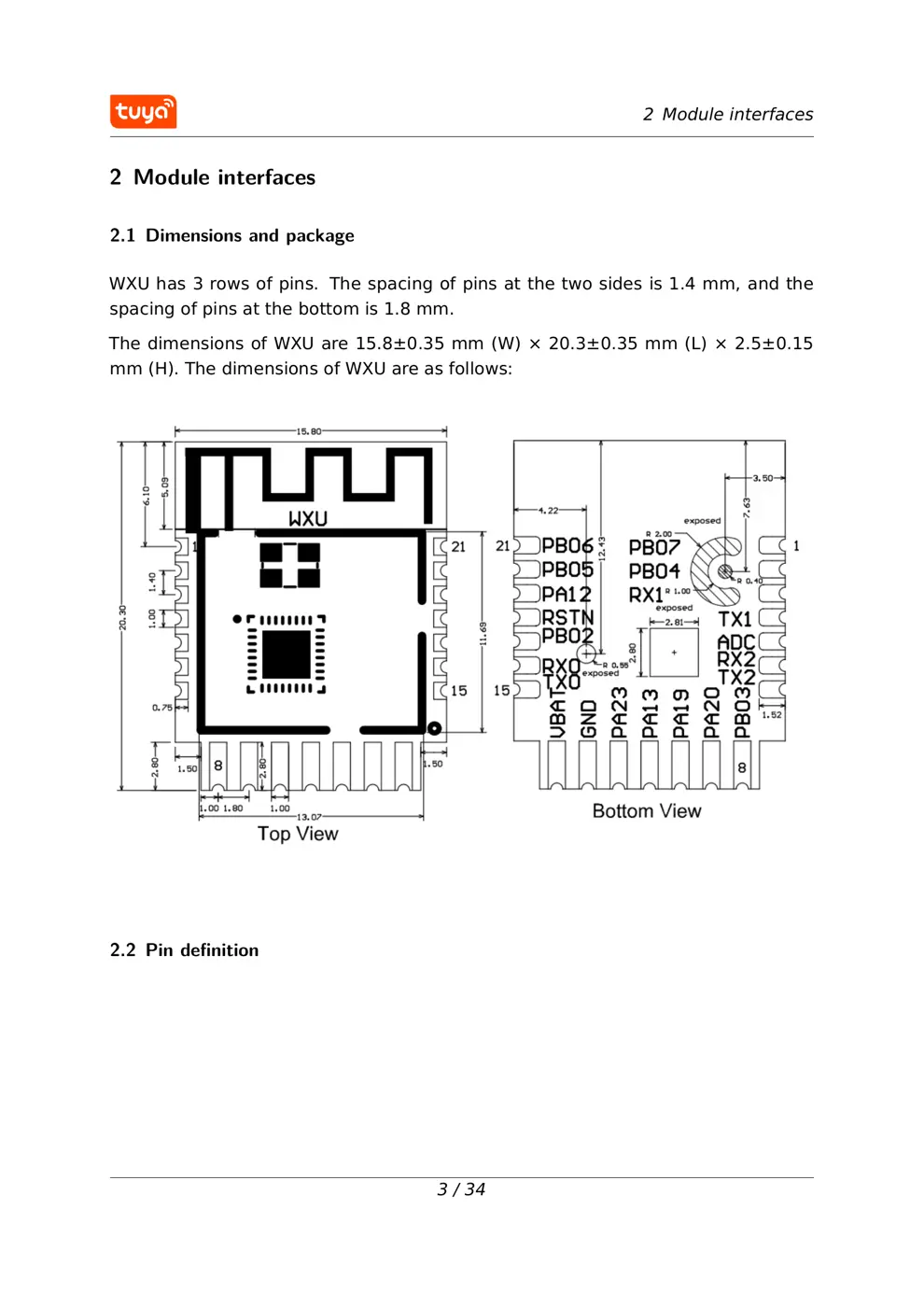

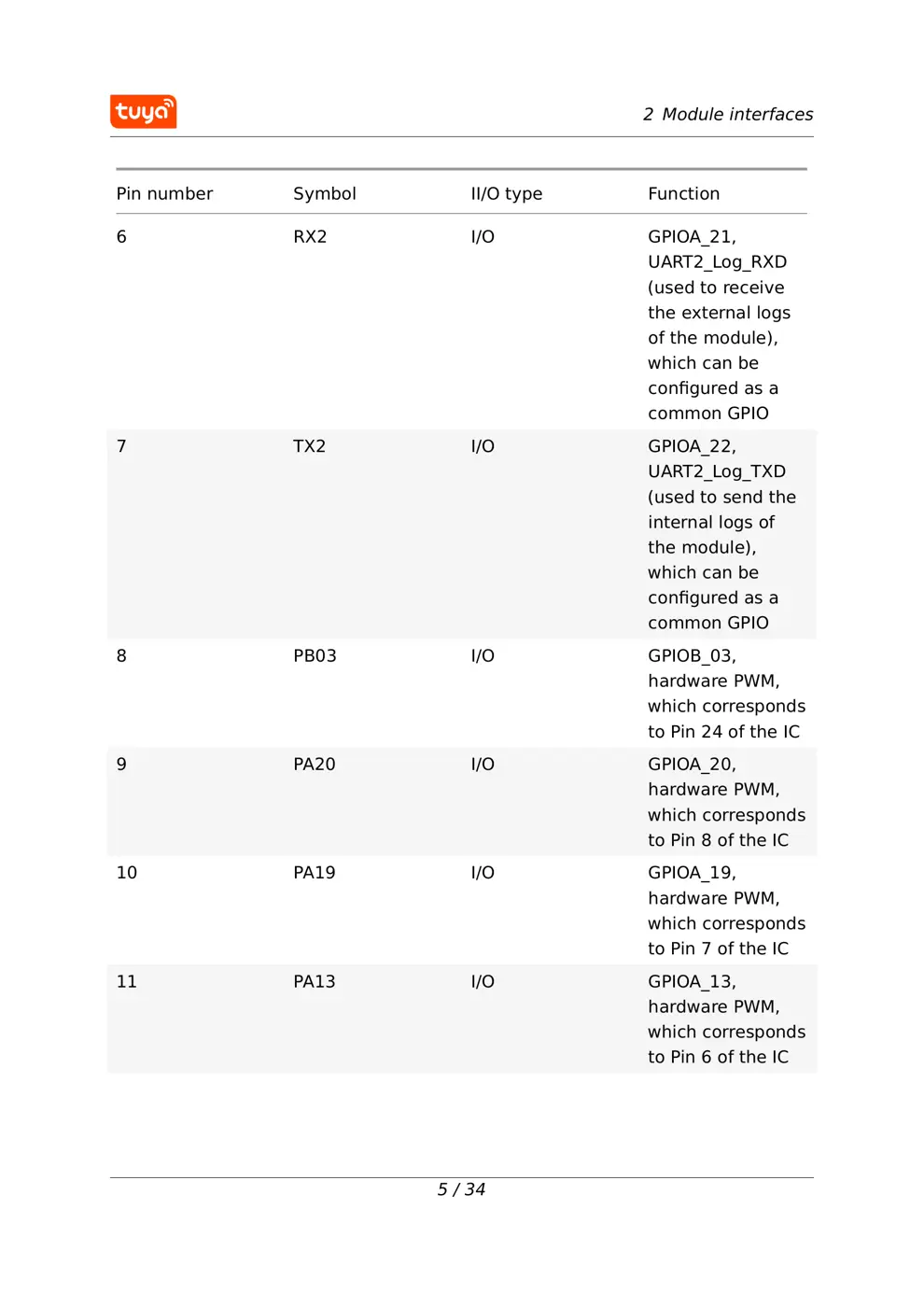

Scanned pages from the official user manual:
External Photos
Photos of the device exterior:
Verdict
The WXU is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)

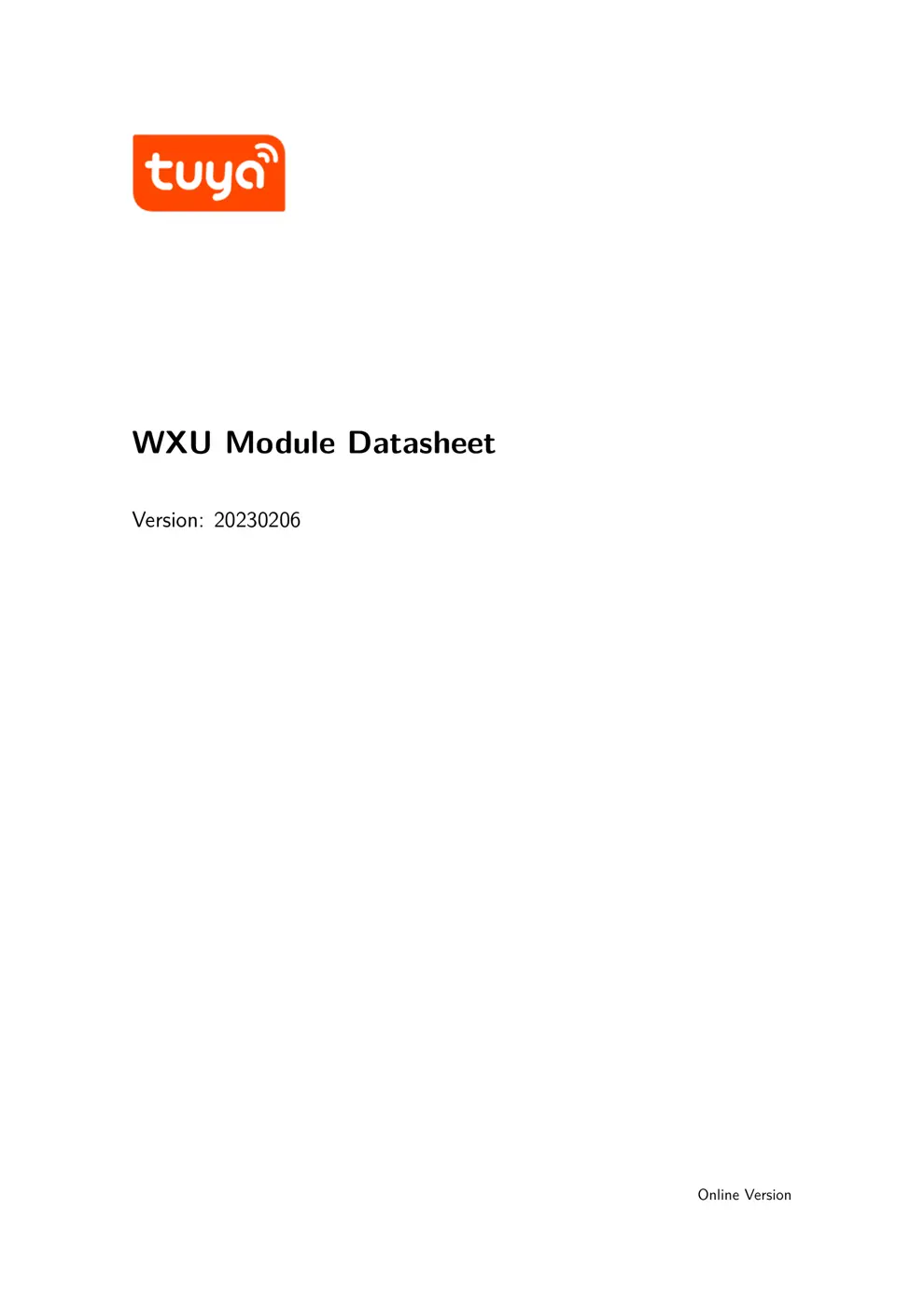

WXU Module Datasheet
Version: 20230206
Online Version

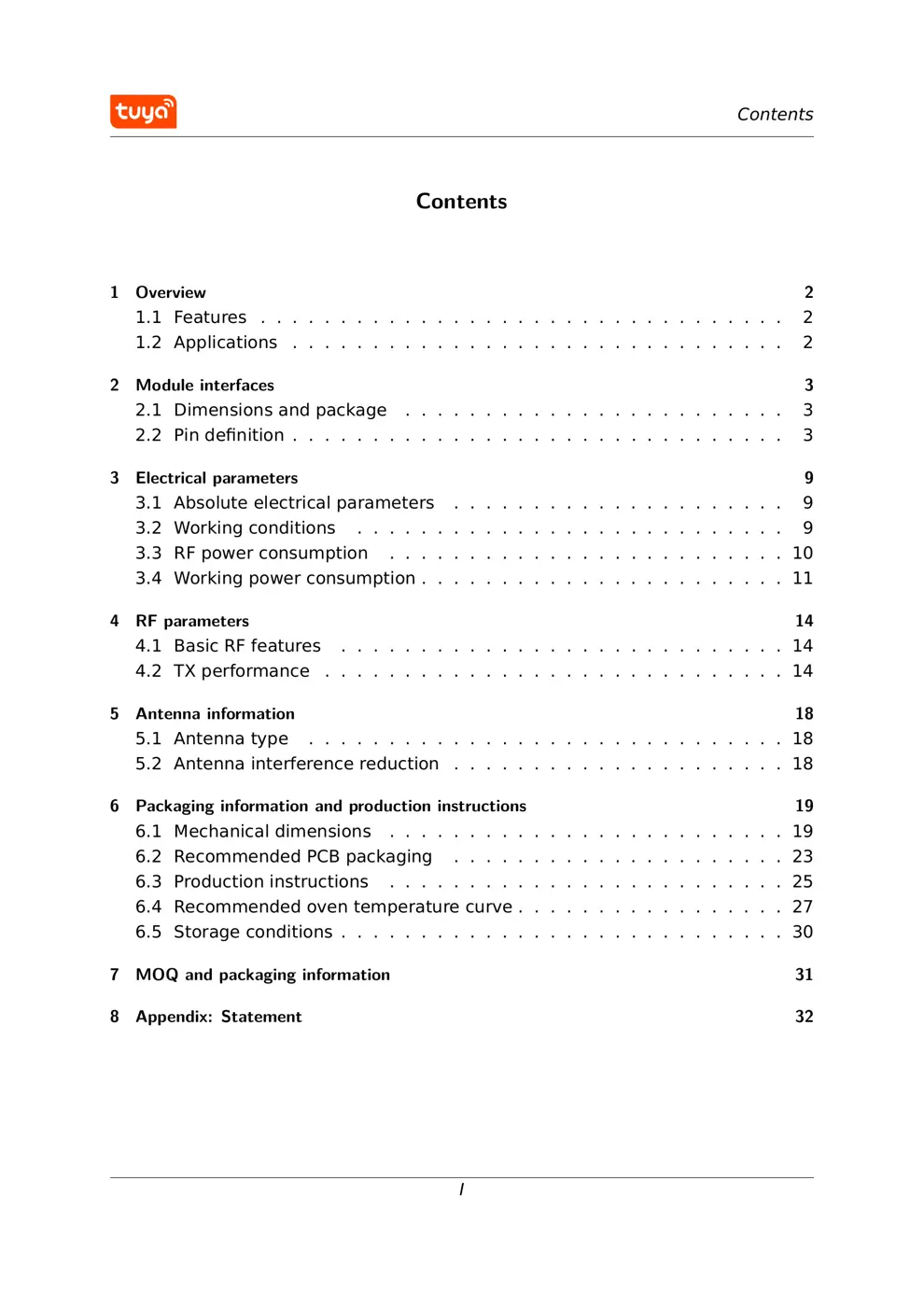

Contents
Contents
1 Overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 3
2.1 Dimensions and package . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Electrical parameters 9
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 9
3.2 Working conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 RF power consumption . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.4 Working power consumption . . . . . . . . . . . . . . . . . . . . . . . 11
4 RF parameters 14
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 TX performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Antenna information 18
5.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.2 Antenna interference reduction . . . . . . . . . . . . . . . . . . . . . 18
6 Packaging information and production instructions 19
6.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2 Recommended PCB packaging . . . . . . . . . . . . . . . . . . . . . 23
6.3 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.4 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 27
6.5 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7 MOQ and packaging information 31
8 Appendix: Statement 32
I
Contents

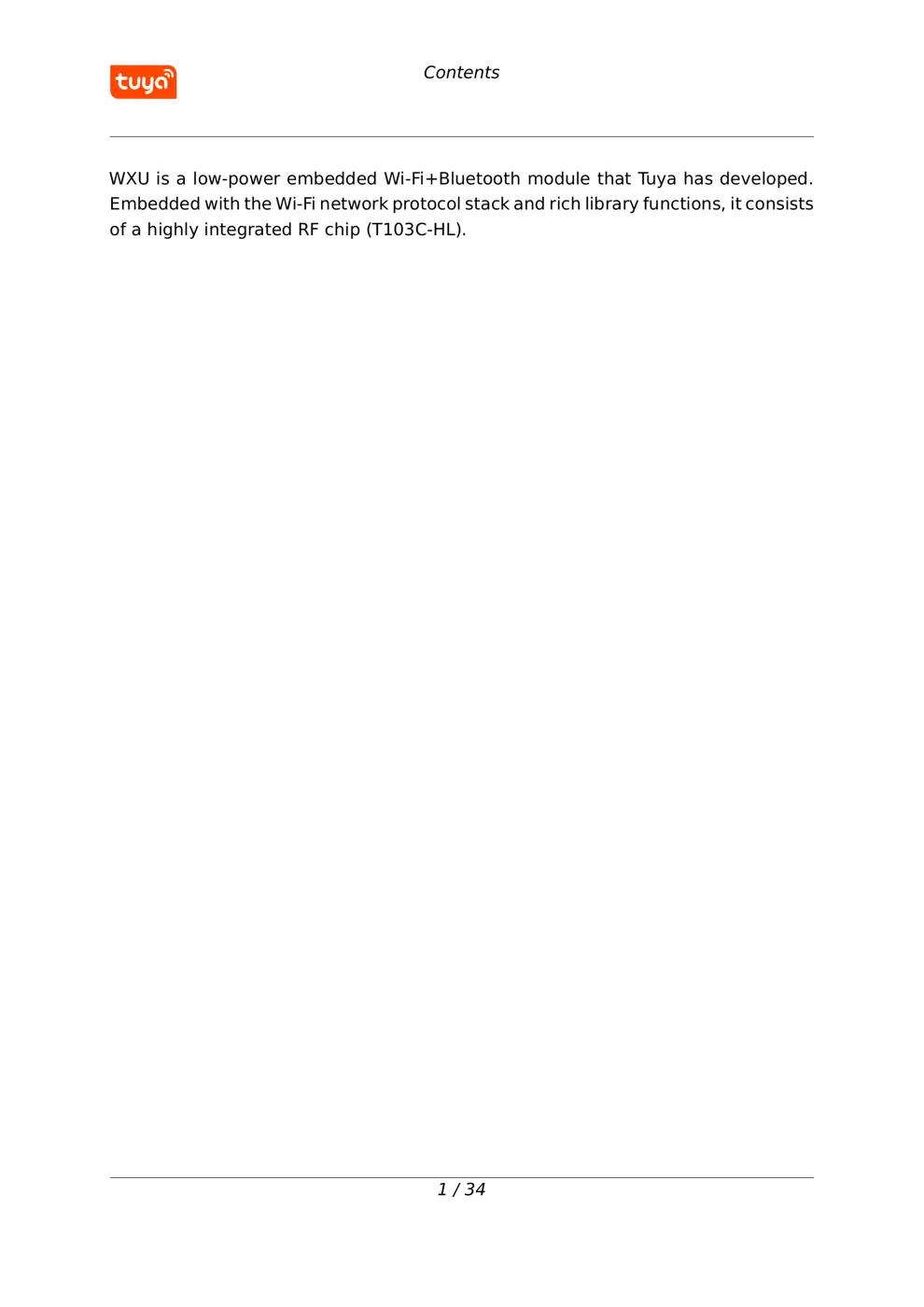

WXU is a low-power embedded Wi-Fi+Bluetooth module that T uya has developed.
Embedded with the Wi-Fi network protocol stack and rich library functions, it consists
of a highly integrated RF chip (T103C-HL).
1 / 34

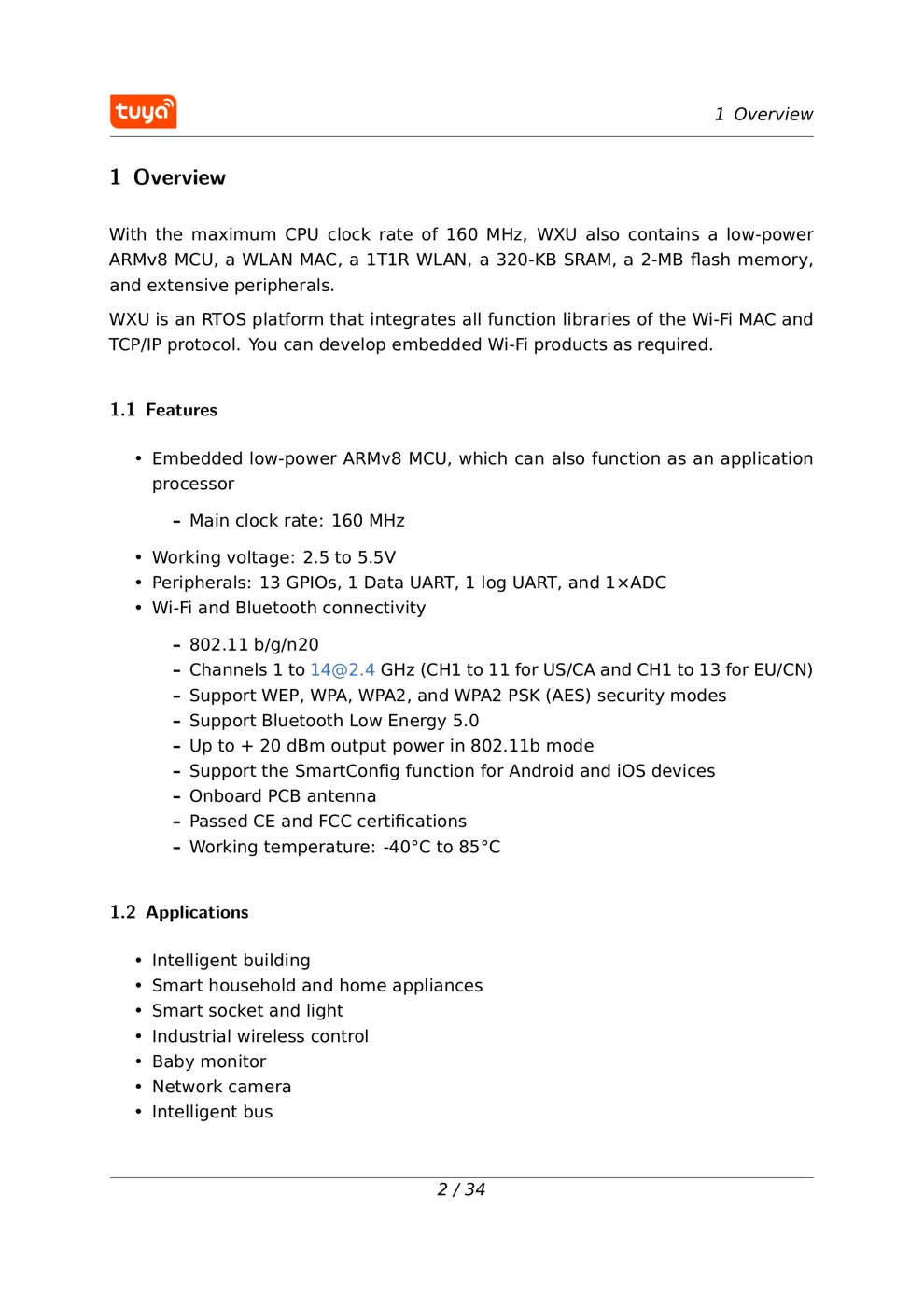

1 Overview
1 Overview
With the maximum CPU clock rate of 160 MHz, WXU also contains a low-power
ARMv8 MCU, a WLAN MAC, a 1T1R WLAN, a 320-KB SRAM, a 2-MB flash memory,
and extensive peripherals.
WXU is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and
TCP/IP protocol. Y ou can develop embedded Wi-Fi products as required.
1.1 Features
• Embedded low-power ARMv8 MCU, which can also function as an application
processor
– Main clock rate: 160 MHz
• Working voltage: 2.5 to 5.5V
• Peripherals: 13 GPIOs, 1 Data UART, 1 log UART, and 1×ADC
• Wi-Fi and Bluetooth connectivity
– 802.11 b/g/n20
– Channels 1 to [email protected] GHz (CH1 to 11 for US/CA and CH1 to 13 for EU/CN)
– Support WEP, WPA, WPA2, and WPA2 PSK (AES) security modes
– Support Bluetooth Low Energy 5.0
– Up to + 20 dBm output power in 802.11b mode
– Support the SmartConfig function for Android and iOS devices
– Onboard PCB antenna
– Passed CE and FCC certifications
– Working temperature: -40°C to 85°C
1.2 Applications
• Intelligent building
• Smart household and home appliances
• Smart socket and light
• Industrial wireless control
• Baby moni...
